Rear Connection Panel
Page 6 of 16

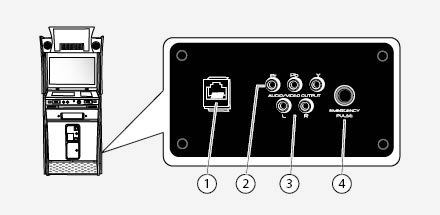

1. Network Jack - RJ45 network jack, connects the Game Gate VU and/or game console
to a LAN and the internet.

2. Component video output - connect an external display

3. Stereo output - connect an external amplifier

4. Emergency jack - optional 6.3mm (1/4") mono jack for emergency pulse (ie. firealarm)
