User Interface Panel
Page 5 of 16

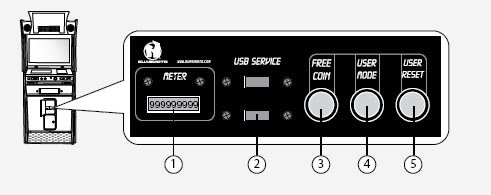

1. Coin meter - non-resetting meter displays the number of coin drops.

2. USB Service ports - connects a keyboard, mouse, and/or USB flash drive to the Game
Gate VU.

3. Free Coin - adds credits to the system without increasing the coin meter.

4. User Mode

5. User Reset
